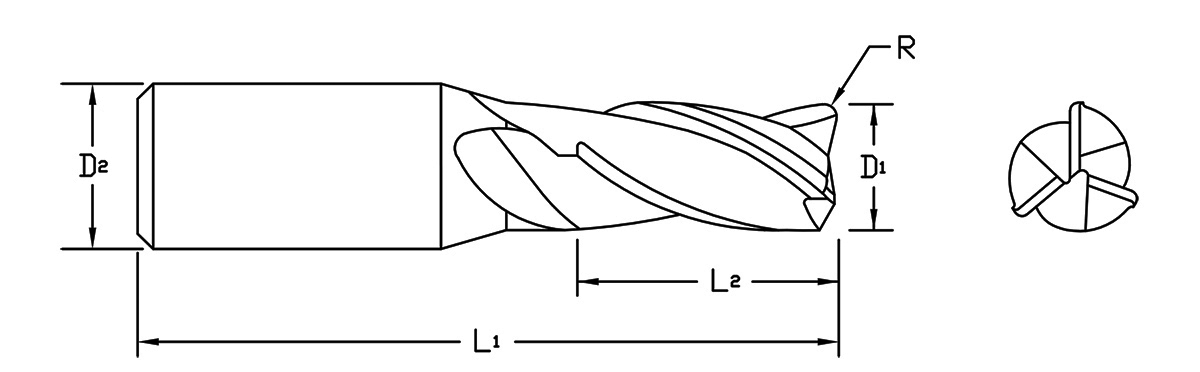

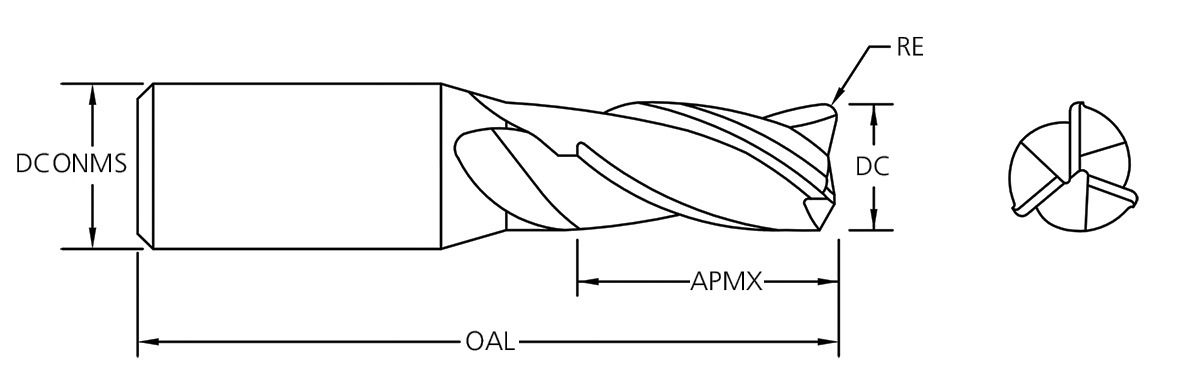

M.A.Ford® TuffCut® GP 3 Flute End Mill Stub 3/64x3/32x1-1/2 drawing M.A.Ford® TuffCut® GP 3 Flute End Mill Stub 3/64x3/32x1-1/2 drawing M.A.Ford® TuffCut® GP 3 Flute End Mill Stub 3/64x3/32x1-1/2 drawing

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

Applications

  • High Efficiency Milling
  • Slotting
  • Traditional Roughing
  • Finishing

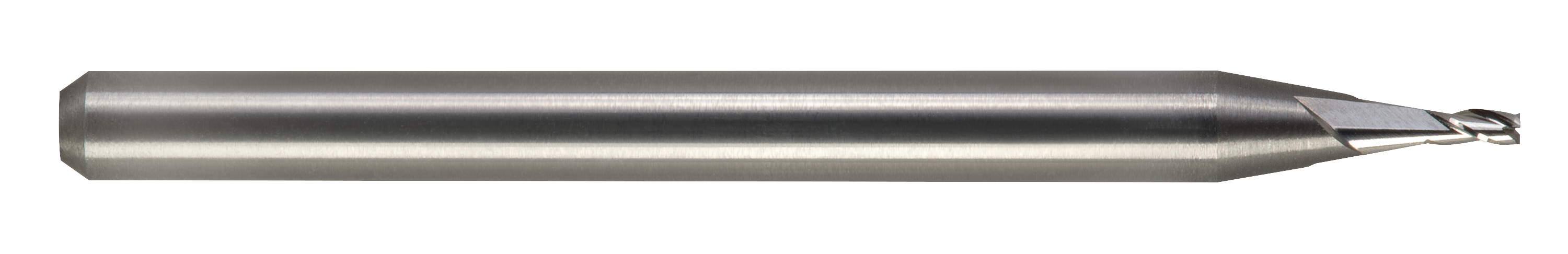

M.A.Ford® TuffCut® GP 3 Flute End Mill Stub 3/64x3/32x1-1/2

Product Id: 16904680
EDP: 16905

Sizes

Diameter (D/D1)3/64
Diameter Dec.0468
Flute Length (L2)3/32
Flute Length Dec.0938
Overall Length (L1)1-1/2
Overall Length Dec1.5000
Shank Diameter (D2)1/8
Shank Diameter Dec.1250

Specifications

Center CuttingYes
CoatingUncoated
Country of OriginUSA
End GrindSquare
Helix Angle30°
MaterialCarbide
# Flutes RH3
PackageHeight0.2992
PackageLength1.7992
PackageWidth0.3937
Shank TypeStraight
Tool ConstructionSolid
Trade NameTuffCut® GP
Type of CutRoughing/Finishing
Weight0.01000725
List Price: $26.85
Available: 14
