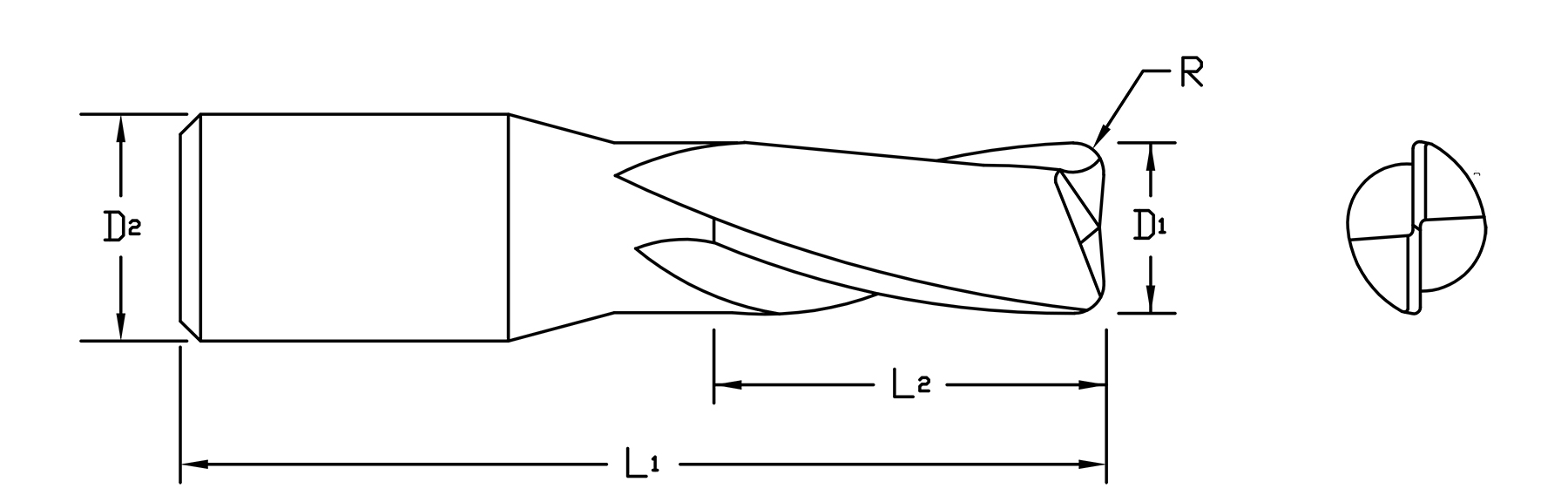

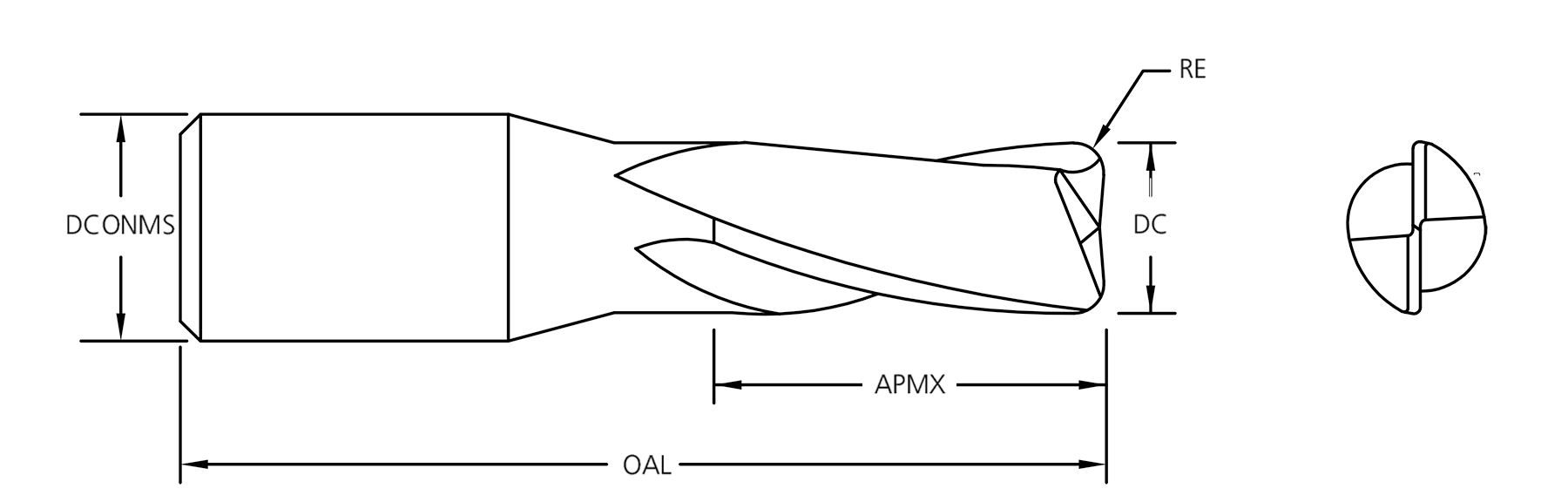

M.A.Ford® TuffCut® GP 2 Flute End Mill Stub 0.20mmx0.40x38 drawing M.A.Ford® TuffCut® GP 2 Flute End Mill Stub 0.20mmx0.40x38 drawing M.A.Ford® TuffCut® GP 2 Flute End Mill Stub 0.20mmx0.40x38 drawing

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

Applications

  • High Efficiency Milling
  • Slotting
  • Traditional Roughing

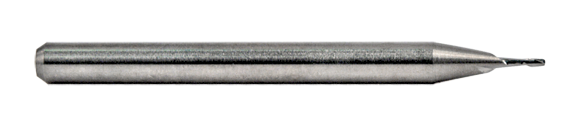

M.A.Ford® TuffCut® GP 2 Flute End Mill Stub 0.20mmx0.40x38

Product Id: 16400780
EDP: 16402

Sizes

Diameter (D/D1)0.20mm
Diameter Dec.0078
Flute Length (L2)0.4mm
Flute Length Dec.0157
Overall Length (L1)38mm
Overall Length Dec1.4961
Shank Diameter (D2)3mm
Shank Diameter Dec.1181

Specifications

Center CuttingYes
CoatingUncoated
Country of OriginUSA
End GrindSquare
Helix Angle30°
MaterialCarbide
# Flutes RH2
Shank TypeStraight
Tool ConstructionSolid
Trade NameTuffCut® GP
Type of CutRoughing/Finishing
Weight0.00935903
List Price: $67.33
Available: 63
