This tool is discontinued and not returnable

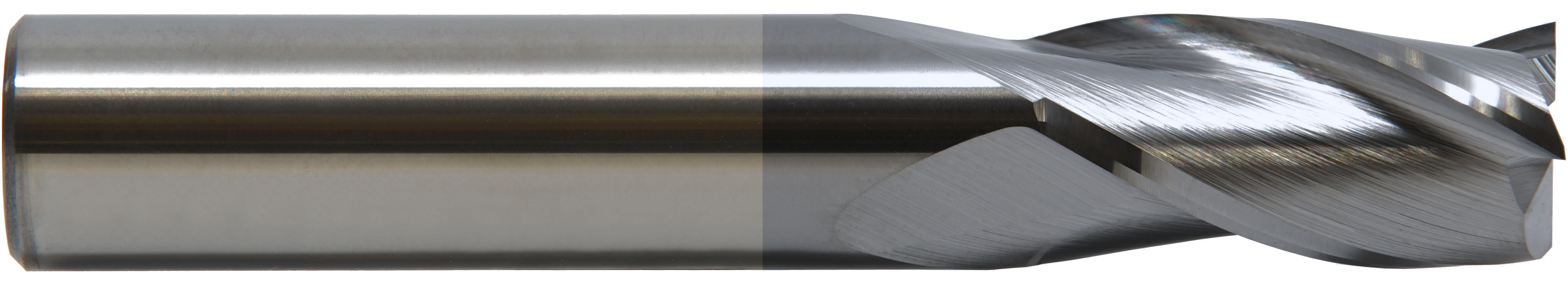

Product Id: 11675003C
EDP: 11376

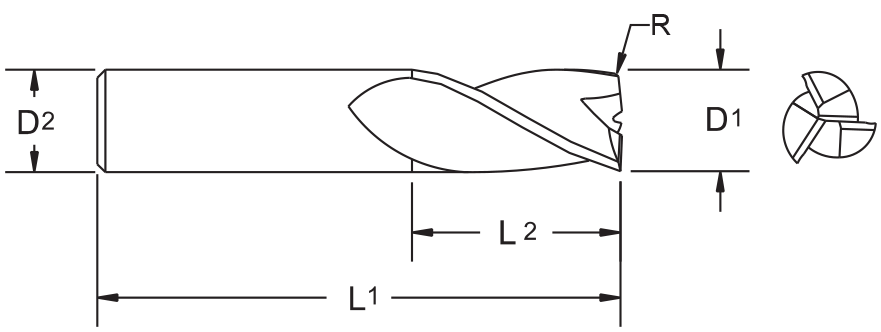

Sizes
| Corner Radius | 0.03 |
|---|
| Corner Radius Dec | .030 |
|---|
| Diameter (D/D1) | 3/4 |
|---|
| Diameter Dec | .7500 |
|---|
| Flute Length (L2) | 1-1/2 |
|---|
| Flute Length Dec | 1.5000 |
|---|
| Overall Length (L1) | 4 |
|---|
| Overall Length Dec | 4.0000 |
|---|
| Shank Diameter (D2) | 3/4 |
|---|
| Shank Diameter Dec | .7500 |
|---|
Specifications
| Center Cutting | Yes |
|---|
| Coating | TiCN |
|---|
| Country of Origin | USA |
|---|
| End Grind | Corner Radius |
|---|
| Helix Angle | 30° |
|---|
| Material | Carbide |
|---|
| # Flutes RH | 3 |
|---|
| Shank Type | Straight |
|---|
| Tool Construction | Solid |
|---|
| Trade Name | TuffCut® GP |
|---|
| Type of Cut | Roughing/Finishing |
|---|
| Weight | 0.83625340 |
|---|
