End Mills / MFPB

Solid Carbide TuffCut® 3D Multi-Flute Parallel Ball Nose End Mill. Designed for 4 and 5 axis, 3D surfacing applications in aerospace and medical materials.

  • Multi-Flute
  • Ball Nose
  • ALtima® Xtreme coating. AX=ALtima® Xtreme coated
  • Center cutting
  • Short and long overall lengths
  • High feed rates in semi-finishing and finishing applications
  • Excellent heat and wear resistance in tough-to-machine materials
  • Provides versatility for complex, tough to reach part features
  • 35° Helix angle

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Super-alloys and titanium
  • Hard material

Applications

  • 3D Surfacing

Series Attributes

Downloads

Product Range

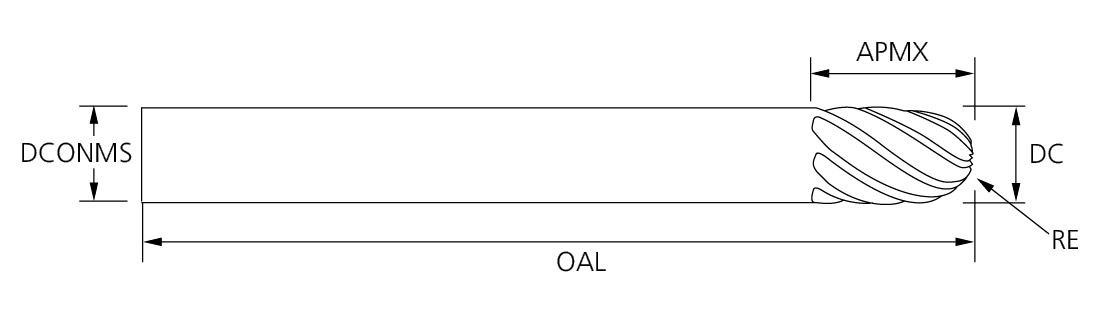

Tool No. EDP Diameter (D/D1) Diameter Dec Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Ball Radius (C) # Flutes RH Coating Shank Type
.2362 MFPBM0601AX 03800 6mm .2362 6mm 57mm 9mm 3mm 6 ALtima® Xtreme Straight
.2362 MFPBM0602AX 03801 6mm .2362 6mm 101mm 9mm 3mm 6 ALtima® Xtreme Straight
.2362 MFPBM0601N1.000AX 19967 6mm .2362 6mm 57mm 9mm 3mm 6 ALtima® Xtreme Straight
.2362 MFPBM0602N1.650AX 19968 6mm .2362 6mm 101mm 9mm 3mm 6 ALtima® Xtreme Straight
.2500 MFPB25001AX 03802 1/4 .2500 1/4 2-1/2 3/8 1/8 6 ALtima® Xtreme Straight
.2500 MFPB25002AX 03803 1/4 .2500 1/4 4 3/8 1/8 6 ALtima® Xtreme Straight
.3125 MFPB31251AX 03804 5/16 .3125 5/16 2-1/2 7/16 5/32 8 ALtima® Xtreme Straight
.3125 MFPB31252AX 03805 5/16 .3125 5/16 4 7/16 5/32 8 ALtima® Xtreme Straight
.3150 MFPBM0801AX 03806 8mm .3150 8mm 63mm 12mm 4mm 8 ALtima® Xtreme Straight
.3150 MFPBM0802AX 03807 8mm .3150 8mm 101mm 12mm 4mm 8 ALtima® Xtreme Straight
.3150 MFPBM0802N1.574AX 20260 8mm .3150 8mm 101mm 12mm 4mm 8 ALtima® Xtreme Straight
.3750 MFPB37501AX 03808 3/8 .3750 3/8 3 1/2 3/16 8 ALtima® Xtreme Straight
.3750 MFPB37502AX 03809 3/8 .3750 3/8 4 1/2 3/16 8 ALtima® Xtreme Straight
.3937 MFPBM1001AX 03810 10mm .3937 10mm 72mm 15mm 5mm 8 ALtima® Xtreme Straight
.3937 MFPBM1002AX 03811 10mm .3937 10mm 103mm 15mm 5mm 8 ALtima® Xtreme Straight
.4724 MFPBM1201AX 03812 12mm .4724 12mm 83mm 18mm 6mm 8 ALtima® Xtreme Straight
.4724 MFPBM1202AX 03813 12mm .4724 12mm 110mm 18mm 6mm 8 ALtima® Xtreme Straight
.5000 MFPB50001AX 03814 1/2 .5000 1/2 3 5/8 1/4 8 ALtima® Xtreme Straight
.5000 MFPB50002AX 03815 1/2 .5000 1/2 4 5/8 1/4 8 ALtima® Xtreme Straight
.6250 MFPB62501AX 03816 5/8 .6250 5/8 3-1/2 3/4 5/16 8 ALtima® Xtreme Straight
.6250 MFPB62502AX 03817 5/8 .6250 5/8 5 3/4 5/16 8 ALtima® Xtreme Straight
.6299 MFPBM1601AX 03818 16mm .6299 16mm 92mm 24mm 8mm 8 ALtima® Xtreme Straight
.6299 MFPBM1602AX 03819 16mm .6299 16mm 110mm 24mm 8mm 8 ALtima® Xtreme Straight
.7500 MFPB75001AX 03820 3/4 .7500 3/4 4 1 3/8 10 ALtima® Xtreme Straight
.7500 MFPB75002AX 03821 3/4 .7500 3/4 6 1 3/8 10 ALtima® Xtreme Straight
.7874 MFPBM2001AX 03822 20mm .7874 20mm 104mm 30mm 10mm 10 ALtima® Xtreme Straight
.7874 MFPBM2002AX 03823 20mm .7874 20mm 152mm 30mm 10mm 10 ALtima® Xtreme Straight
