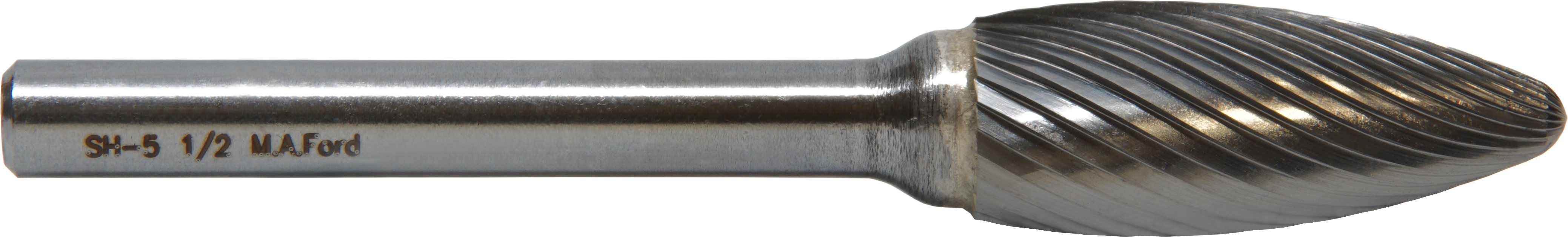

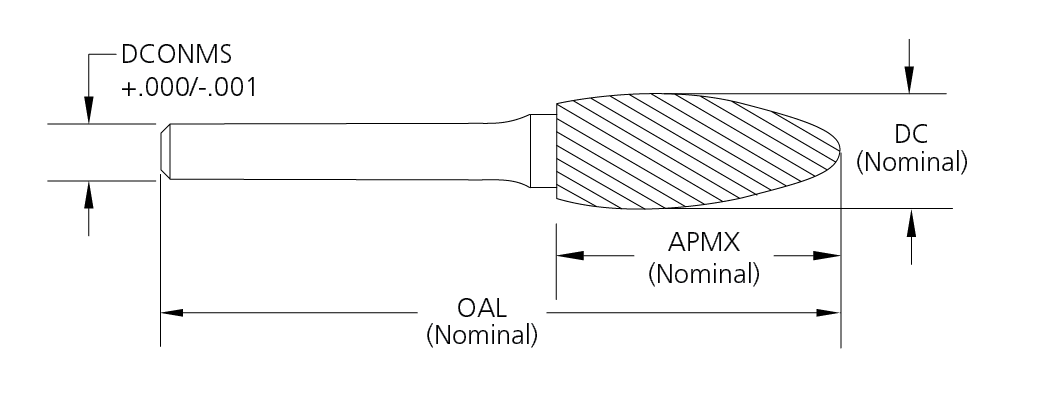

product photo product drawing

Burs / 69SH

Solid Carbide Edge Hog® Bur
Flame Micro Sizes

  • SCTI SH
  • Solid carbide 1/4" sizes and below, brazed construction over 1/4"
  • Inch and metric sizes
  • Single, double, and fine cuts available

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (DC) Shank Diameter (DCONMS) Overall Length (OAL) Flute Length (APMX) Specification Type of Cut Coating Shank Type
.1181 69160020L3M 69838 3mm 3mm 76mm 6mm SH-41L76M Single Uncoated Straight
.1181 69160020M 69517 3mm 3mm 38mm 6mm SH-41M Single Uncoated Straight
.1181 69160027M 69525 3mm 3mm 38mm 6mm SH-41M-D Double Cut Uncoated Straight
.1181 69160030M 69533 3mm 3mm 38mm 6mm SH-41M-F Fine Uncoated Straight
.1181 69160027L3M 69840 3mm 3mm 76mm 6mm SH-41L76M-D Double Cut Uncoated Straight
.1181 69160026M 76628 3mm 3mm 38mm 6mm SH-41M Diam Std Diamond Uncoated Straight
.1181 69160036M 76630 3mm 3mm 38mm 6mm SH-41M-F Diam Fine Diamond Uncoated Straight
.1181 69160037M 76632 3mm 3mm 38mm 6mm SH-41M-F Alt Diam Fine Alternate Diamond Uncoated Straight
.1250 69160020 69513 1/8 1/8 1-1/2 1/4 SH-41 Single Uncoated Straight
.1250 69160020L3 69837 1/8 1/8 3 1/4 SH-41L3 Single Uncoated Straight
.1250 69160027 69521 1/8 1/8 1-1/2 1/4 SH-41-D Double Cut Uncoated Straight
.1250 69160027L3 69839 1/8 1/8 3 1/4 SH-41L3-D Double Cut Uncoated Straight
.1250 69160030 69529 1/8 1/8 1-1/2 1/4 SH-41-F Fine Uncoated Straight
.1250 69160026 76627 1/8 1/8 1-1/2 1/4 SH-41 Diam Std Diamond Uncoated Straight
.1250 69160036 76629 1/8 1/8 1-1/2 1/4 SH-41-F Diam Fine Diamond Uncoated Straight
.1250 69160027B 16089 1/8 1/8 1-1/2 1/4 SH-41-D Double Cut ALtima® Blaze Straight
