TuffCut® End Mills - Series 3MV

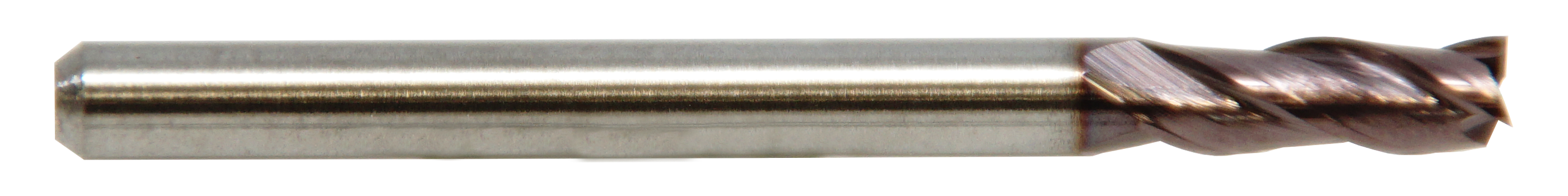

Solid Carbide TuffCut® 3MV 3 Flute Micro End Mill
For high performance micro milling on any ferrous material, especially material used in medical and aerospace manufacturing.
  • 3 Flute
  • Solid carbide
  • Stub length Series 3MVS
  • Standard length Series 3MVR
  • Coated with ALtima® 52, AH=ALtima® 52 coated
  • 31°-35° Variable helix
  • Manufactured from premium grade ultrafine carbide material for extended tool life
  • Center cutting
  • Square end with neck relief options
  • Common Shanks
  • Material Applications: Steels, Stainless Steels, Hardened Steels, Special and High Temp Alloys
* This is a non-stock and non-returnable item

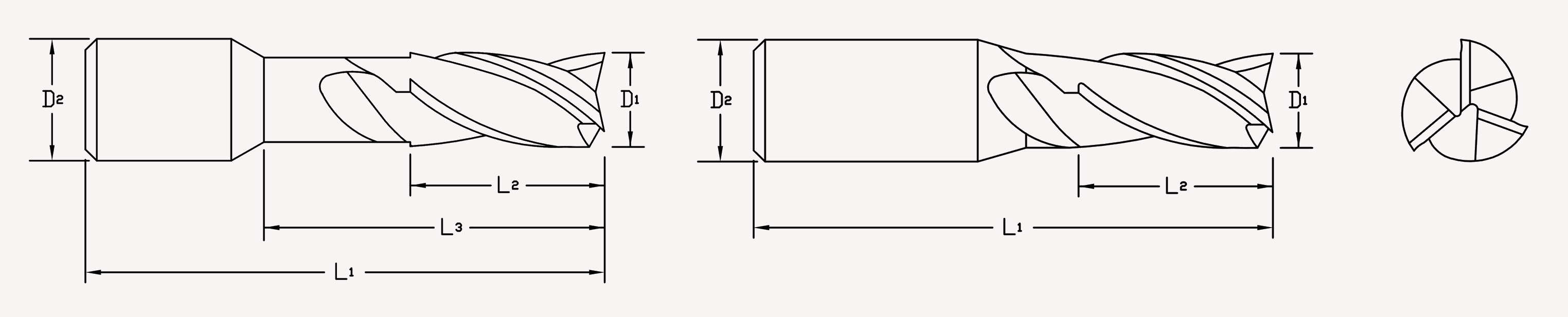

Tool EDP Diameter Shank Diameter Oal Flute Length Neck Length Available Price
3MVR1250AH 39061 1/8 1/8 1-1/2 .3750
3MVS1250AH 39060 1/8 1/8 1-1/2 .1880
3MVS1250N5AH 39063 1/8 1/8 2-1/2 .1880 .6250
3MVS0156AH 39000 1/64 1/8 1-1/2 .0230
3MVR0156AH 39001 1/64 1/8 1-1/2 .0470
3MVS0156N5AH 39002 1/64 1/8 2-1/2 .0230 .0780
3MVS0156N8AH 39003 1/64 1/8 2-1/2 .0230 .1250
3MVSM0050AH 39004 0.50mm 4.0 50 0.75
3MVR0312AH 39007 1/32 1/8 1-1/2 .0940
3MVRM0050AH 39005 0.50mm 4.0 50 1.50
3MVS0312AH 39006 1/32 1/8 1-1/2 .0470
3MVS0312N3AH 39008 1/32 1/8 1-1/2 .0470 .0930
3MVS0312N5AH 39009 1/32 1/8 2-1/2 .0470 .1560
3MVS0312N10AH 39011 1/32 1/8 2-1/2 .0470 .3120
3MVS0312N12AH 39012 1/32 1/8 2-1/2 .0470 .3750
3MVS0312N8AH 39010 1/32 1/8 2-1/2 .0470 .2500
3MVRM0100AH 39015 1.00mm 4.0 50 3.00
3MVS0312N15AH 39013 1/32 1/8 2-1/2 .0470 .4800
3MVSM0100AH 39014 1.00mm 4.0 50 1.50
3MVSM0100N5AH 39016 1.00mm 4.0 50 1.50 5.0
3MVSM0100N8AH 39017 1.00mm 4.0 50 1.50 8.0
3MVS0468AH 39018 3/64 1/8 1-1/2 .0700
3MVR0468AH 39019 3/64 1/8 1-1/2 .1400
3MVS0468N10AH 39022 3/64 1/8 2-1/2 .0700 .4800
3MVS0468N5AH 39020 3/64 1/8 2-1/2 .0700 .2500
3MVS0468N8AH 39021 3/64 1/8 2-1/2 .0700 .3750
3MVSM0150AH 39023 1.50mm 4.0 50 2.25
3MVR0625AH 39026 1/16 1/8 1-1/2 .1880
3MVRM0150AH 39024 1.50mm 4.0 50 4.50
3MVS0625AH 39025 1/16 1/8 1-1/2 .0940
3MVS0625N3AH 39027 1/16 1/8 1-1/2 .0940 .1870
3MVS0625N5AH 39028 1/16 1/8 2-1/2 .0940 .3120
3MVS0625N10AH 39030 1/16 1/8 2-1/2 .0940 .6250
3MVS0625N12AH 39031 1/16 1/8 2-1/2 .0940 .7500
3MVS0625N8AH 39029 1/16 1/8 2-1/2 .0940 .5000
3MVR0781AH 39034 5/64 1/8 1-1/2 .2340
3MVS0625N15AH 39032 1/16 1/8 2-1/2 .0940 .9500
3MVS0781AH 39033 5/64 1/8 1-1/2 .1170
3MVS0781N5AH 39035 5/64 1/8 2-1/2 .1170 .4060
3MVS0781N10AH 39037 5/64 1/8 2-1/2 .1170 .8000
3MVS0781N8AH 39036 5/64 1/8 2-1/2 .1170 .6250
3MVSM0200AH 39038 2.00mm 4.0 50 3.00
3MVR0938AH 39043 3/32 1/8 1-1/2 .1410
3MVRM0200AH 39039 2.00mm 4.0 50 6.00
3MVS0938AH 39042 3/32 1/8 1-1/2 .2810
3MVS0938N3AH 39044 3/32 1/8 1-1/2 .2810 .2790
3MVS0938N5AH 39045 3/32 1/8 2-1/2 .2810 .5000
3MVSM0200N5AH 39040 2.00mm 4.0 50 3.00 10.0
3MVSM0200N8AH 39041 2.00mm 4.0 50 3.00 16.0
3MVRM0250AH 39051 2.50mm 4.0 50 7.50
3MVS0938N10AH 39047 3/32 1/8 2-1/2 .2810 .9500
3MVS0938N12AH 39048 3/32 1/8 2-1/2 .2810 1.1250
3MVS0938N15AH 39049 3/32 1/8 2-1/2 .2810 1.4000
3MVS0938N8AH 39046 3/32 1/8 2-1/2 .2810 .7500
3MVSM0250AH 39050 2.50mm 4.0 50 3.75
3MVS1094AH 39052 7/64 1/8 1-1/2 .1640
3MVS1094N5AH 39054 7/64 1/8 2-1/2 .1640 .5700
3MVS1094N8AH 39055 7/64 1/8 2-1/2 .1640 .9000
3MVSM0300AH 39056 3.00mm 4.0 50 4.50
3MVRM0300AH 39057 3.00mm 4.0 50 9.00
3MVS1250N10AH 39065 1/8 1/8 2-1/2 .1880 1.2500
3MVS1250N3AH 39062 1/8 1/8 1-1/2 .1880 .3750
3MVS1250N8AH 39064 1/8 1/8 2-1/2 .1880 1.0000
3MVSM0300N5AH 39058 3.00mm 4.0 50 4.50 15.0
3MVSM0300N8AH 39059 3.00mm 4.0 50 4.50 24.0
