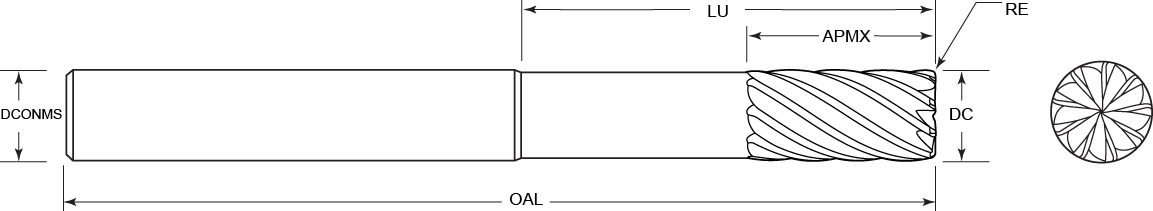

product photo product drawing

End Mills / 380N

Solid Carbide TuffCut® XT9, 9 Flute End Mill, Neck Relief
Designed for high speed machining of Titanium, Inconel and similar materials

  • 9 Flute
  • Solid carbide
  • ALtima® Xtreme coating, AX=ALtima® Xtreme coated
  • Standard and long flute lengths
  • 37° Helix angle
  • For high speed machining and dry machining
  • Non-center cutting
  • Corner radius
  • Neck relief
  • Uneven number of flutes reduces harmonics to provide stable machining zones

Materials

  • Stainless steel
  • Super-alloys and titanium

Applications

  • High Efficiency Milling
  • Finishing

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Neck Length (L3) Corner Radius Coating Shank Type
.3750 38037512N4AX 40282 3/8 3/8 3 3/4 1-1/2 0.015 ALtima® Xtreme Straight
.3750 38037514N4AX 40283 3/8 3/8 3 3/4 1-1/2 0.03 ALtima® Xtreme Straight
.3750 38037512N5AX 40284 3/8 3/8 3-1/2 3/4 1-7/8 0.015 ALtima® Xtreme Straight
.3750 38037514N5AX 40285 3/8 3/8 3-1/2 3/4 1-7/8 0.03 ALtima® Xtreme Straight
.5000 38050012N4AX 40286 1/2 1/2 4 1 2 0.015 ALtima® Xtreme Straight
.5000 38050014N4AX 40287 1/2 1/2 4 1 2 0.03 ALtima® Xtreme Straight
.5000 38050012N5AX 40288 1/2 1/2 5 1 2-1/2 0.015 ALtima® Xtreme Straight
.5000 38050014N5AX 40289 1/2 1/2 5 1 2-1/2 0.03 ALtima® Xtreme Straight
.6299 380M1600N4-1.0RAX 19974 16mm 16mm 92mm 42mm 4mm 1mm ALtima® Xtreme Straight
.7500 380L7504N4.000AX 20045 3/4 3/4 5 2-1/4 4 0.03 ALtima® Xtreme Straight
0.6250 38062512N4AX 40290 5/8 5/8 5 1-1/4 2-1/2 0.015 ALtima® Xtreme Straight
0.6250 38062514N4AX 40291 5/8 5/8 5 1-1/4 2-1/2 0.03 ALtima® Xtreme Straight
0.6250 38062512N5AX 40292 5/8 5/8 5 1-1/4 3-1/8 0.015 ALtima® Xtreme Straight
0.6250 38062514N5AX 40293 5/8 5/8 5 1-1/4 3-1/8 0.03 ALtima® Xtreme Straight
0.7500 38075012N4AX 40294 3/4 3/4 6 1-1/2 3 0.015 ALtima® Xtreme Straight
0.7500 38075014N4AX 40295 3/4 3/4 6 1-1/2 3 0.03 ALtima® Xtreme Straight
0.7500 38075012N5AX 40296 3/4 3/4 6 1-1/2 3-3/4 0.015 ALtima® Xtreme Straight
0.7500 38075014N5AX 40297 3/4 3/4 6 1-1/2 3-3/4 0.03 ALtima® Xtreme Straight
