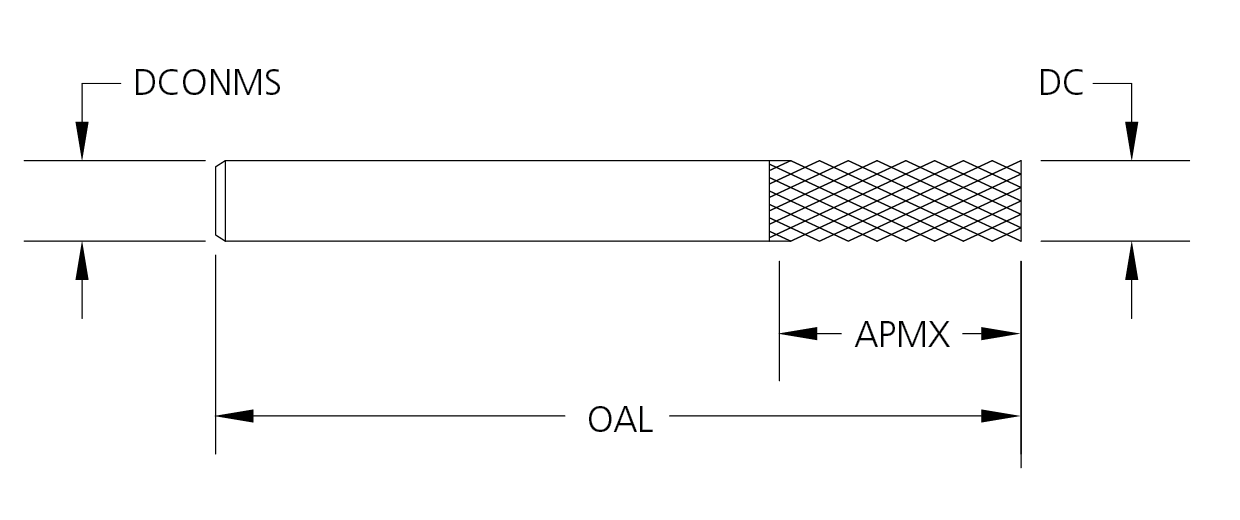

product photo product drawing

Routers / 231CE

Solid Carbide Diamond Grind Router End Mill Type Point, CERAedge® Coated
Designed for routing of glass-reinforced printed circuit boads, phenolic-epoxy and other highly abrasive materials.
  • Solid carbide
  • Down cut
  • End mill type point
  • CERAedge® coated, CE=CERAedge® coated
  • Routers are available with color coded depth setting rings upon request
  • Material Applications: Non-Ferrous
*This series has been obsoleted.  Tools with stock will be available until the stock is depleted and cannot be returned.  Contact customer service if you require an obsolete tool as a special.

Series Attributes

Product Range

Tool No. EDP Diameter (D/D1) Diameter Dec Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Coating Tool Construction Material
.1181 23111810CE 91047 3.00mm .1181 3.00 38 12.50 CERAedge® Solid Carbide
.1250 23112500CE 91071 1/8 .1250 1/8 1-1/2 1/2 CERAedge® Solid Carbide
.1875 23118750CE 91082 3/16 .1875 3/16 2 5/8 CERAedge® Solid Carbide
.1968 23119680CE 91094 5.00mm .1968 5.00 51 16.00 CERAedge® Solid Carbide
.2500 23125010CE 91130 1/4 .2500 1/4 2-1/2 3/4 CERAedge® Solid Carbide
