Routers / 231

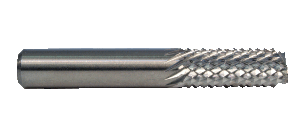

Solid Carbide Diamond Grind Router End Mill Type Point

Designed for routing of glass-reinforced printed circuit boards, phenolic-epoxy and other highly abrasive materials.

Solid carbide
Down cut
End mill type point
Routers are available with color coded depth setting rings upon request
Uncoated, coatings available upon request

Materials

Series Attributes

Downloads

Speed and Feed Data

Series 231 Catalog Pages

Line Drawing

Product Range

	Tool No.	EDP	Diameter (D/D1)	Diameter Dec	Shank Diameter (D2)	Overall Length (L1)	Flute Length (L2)	End Grind	Coating	Shank Type

.0312	23103120	90901	1/32	.0312	1/8	1-1/2	1/8	End Mill	Uncoated	Straight
.0312	23103120C	90902	1/32	.0312	1/8	1-1/2	1/8	End Mill	Uncoated	Straight
.0315	23103150	90913	0.8mm	.0315	3.175mm	38mm	3mm	End Mill	Uncoated	Straight
.0315	23103150C	90914	0.8mm	.0315	3.175mm	38mm	3mm	End Mill	Uncoated	Straight
.0394	23103940	90925	1mm	.0394	3.175mm	38mm	4mm	End Mill	Uncoated	Straight
.0394	23103940C	90926	1mm	.0394	3.175mm	38mm	4mm	End Mill	Uncoated	Straight
.0469	23104690	90937	3/64	.0469	1/8	1-1/2	5/32	End Mill	Uncoated	Straight
.0469	23104690C	90938	3/64	.0469	1/8	1-1/2	5/32	End Mill	Uncoated	Straight
.0472	23104720	90949	1.2mm	.0472	3.175mm	38mm	4mm	End Mill	Uncoated	Straight
.0472	23104720C	90950	1.2mm	.0472	3.175mm	38mm	4mm	End Mill	Uncoated	Straight
.0591	23105910	90961	1.5mm	.0591	3mm	38mm	5mm	End Mill	Uncoated	Straight
.0591	23105911	90973	1.5mm	.0591	3.175mm	38mm	5mm	End Mill	Uncoated	Straight
.0591	23105911C	90974	1.5mm	.0591	3.175mm	38mm	5mm	End Mill	Uncoated	Straight
.0625	23106251	90985	1/16	.0625	1/8	1-1/2	3/16	End Mill	Uncoated	Straight
.0625	23106251C	90986	1/16	.0625	1/8	1-1/2	3/16	End Mill	Uncoated	Straight
.0630	23106300	90997	1.6mm	.0630	3.175mm	38mm	5mm	End Mill	Uncoated	Straight
.0630	23106300C	90998	1.6mm	.0630	3.175mm	38mm	5mm	End Mill	Uncoated	Straight
.0787	23107870	91009	2mm	.0787	3.175mm	38mm	8mm	End Mill	Uncoated	Straight
.0787	23107870C	91010	2mm	.0787	3.175mm	38mm	8mm	End Mill	Uncoated	Straight
.0937	23109370	91021	3/32	.0937	1/8	1-1/2	3/8	End Mill	Uncoated	Straight
.0937	23109370C	91022	3/32	.0937	1/8	1-1/2	3/8	End Mill	Uncoated	Straight
.0945	23109450	91033	2.4mm	.0945	3.175mm	38mm	9.5mm	End Mill	Uncoated	Straight
.0945	23109450C	91034	2.4mm	.0945	3.175mm	38mm	9.5mm	End Mill	Uncoated	Straight
.0945	23109450GP	18125	2.4mm	.0945	3.175mm	38mm	9.5mm	End Mill	Gem Plus	Straight
.1181	23111810	91045	3mm	.1181	3mm	38mm	12.5mm	End Mill	Uncoated	Straight
.1181	23111811	91057	3mm	.1181	3.175mm	38mm	12.5mm	End Mill	Uncoated	Straight
.1181	23111811C	91058	3mm	.1181	3.175mm	38mm	12.5mm	End Mill	Uncoated	Straight
.1250	23112500	91069	1/8	.1250	1/8	1-1/2	1/2	End Mill	Uncoated	Straight
.1250	23112500T	77641	1/8	.1250	1/8	1-1/2	1/2	End Mill	TiN	Straight
.1250	23112500C	91070	1/8	.1250	1/8	1-1/2	1/2	End Mill	Uncoated	Straight
.1875	23118750	91081	3/16	.1875	3/16	2	5/8	End Mill	Uncoated	Straight
.1968	23119680	91093	5mm	.1968	5mm	51mm	16mm	End Mill	Uncoated	Straight
.2362	23123620	91105	6mm	.2362	6mm	51mm	19mm	End Mill	Uncoated	Straight
.2500	23125000	91117	1/4	.2500	1/4	2	3/4	End Mill	Uncoated	Straight
.2500	23125010	91129	1/4	.2500	1/4	2-1/2	3/4	End Mill	Uncoated	Straight
.2500	23125020	91141	1/4	.2500	1/4	3	3/4	End Mill	Uncoated	Straight
.2500	23125000FTICN	77644	1/4	.2500	1/4	2	3/4	Fishtail	TiCN	Straight
.2500	23125020T	75766	1/4	.2500	1/4	3	3/4	End Mill	TiN	Straight
.2500	23125020A	17048	1/4	.2500	1/4	3	3/4	End Mill	ALtima®	Straight
.2500	23125010GP	18143	1/4	.2500	1/4	2-1/2	3/4	End Mill	Gem Plus	Straight
.3125	23131250	91153	5/16	.3125	5/16	2-1/2	7/8	End Mill	Uncoated	Straight
.3150	23131500	91165	8mm	.3150	8mm	64mm	22mm	End Mill	Uncoated	Straight
.3750	23137500	91177	3/8	.3750	3/8	2-1/2	7/8	End Mill	Uncoated	Straight
