End Mills / 132

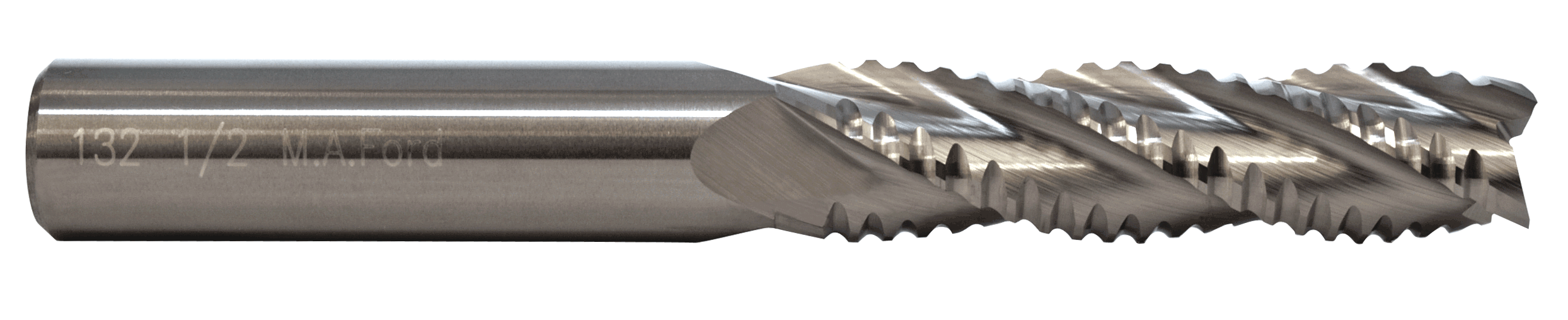

Solid Carbide TuffCut® GP 4 Flute End Mill, Long Length
Chipbreaker end mill designed for aggressive milling of most material.
  • 4 Flute
  • Solid carbide
  • Chipbreaker designed to minimize cutting forces, reduce or eliminate chatter and prolong tool life
  • Center cutting, long flute lengths, square end
  • 30° Helix angle
  • Uncoated, coating available upon request
  • For roughing with chipbreaker applications
  • Geometry allows extremely high feed rates in roughing operations
  • Tools designed with tooth overlap to produce smooth part finishes

Product Range

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Neck Length (L3) Corner Radius Coating Shank Type
.1181 13211810 13203 3mm 3mm 64mm 25mm Uncoated Straight
.1250 13212500 13205 1/8 1/8 2-1/2 1 Uncoated Straight
.1250 13212500A 10995 1/8 1/8 2-1/2 1 ALtima® Straight
.1875 13218750 13207 3/16 3/16 3 1-1/8 Uncoated Straight
.2362 13223620 13209 6mm 6mm 76mm 30mm Uncoated Straight
.2362 13223620A 10997 6mm 6mm 76mm 30mm ALtima® Straight
.2500 13225000 13211 1/4 1/4 3 1-1/4 Uncoated Straight
.2500 13225000W 10607 1/4 1/4 3 1-1/4 Uncoated Weldon
.2500 13225000A 10998 1/4 1/4 3 1-1/4 ALtima® Straight
.3125 13231250 13213 5/16 5/16 3-1/4 1-3/8 Uncoated Straight
.3125 13231250A 11000 5/16 5/16 3-1/4 1-3/8 ALtima® Straight
.3150 13231500 13215 8mm 8mm 83mm 35mm Uncoated Straight
.3150 13231500A 11028 8mm 8mm 83mm 35mm ALtima® Straight
.3750 13237500 13217 3/8 3/8 3-1/2 1-1/2 Uncoated Straight
.3750 13237500A 11046 3/8 3/8 3-1/2 1-1/2 ALtima® Straight
.3750 13237500B 12759 3/8 3/8 3-1/2 1-1/2 ALtima® Blaze Straight
.3750 13237500T 76992 3/8 3/8 3-1/2 1-1/2 TiN Straight
.3750 13237500W 76993 3/8 3/8 3-1/2 1-1/2 Uncoated Weldon
.3750 13237500AW 14818 3/8 3/8 3-1/2 1-1/2 ALtima® Weldon
.3750 13237500GP 19416 3/8 3/8 3-1/2 1-1/2 Gem Plus Straight
.3937 13239370 13219 10mm 10mm 89mm 40mm Uncoated Straight
.3937 13239370A 11049 10mm 10mm 89mm 40mm ALtima® Straight
.4375 13243750 13221 7/16 7/16 4 1-3/4 Uncoated Straight
.4375 13243750W 10609 7/16 7/16 4 1-3/4 Uncoated Weldon
.4375 13243750A 11050 7/16 7/16 4 1-3/4 ALtima® Straight
.4724 13247240 13223 12mm 12mm 102mm 50mm Uncoated Straight
.4724 13247240A 11051 12mm 12mm 102mm 50mm ALtima® Straight
.5000 13250000 13225 1/2 1/2 4 2 Uncoated Straight
.5000 13250000A 11052 1/2 1/2 4 2 ALtima® Straight
.5000 13250000T 11054 1/2 1/2 4 2 TiN Straight
.5000 13250000B 12763 1/2 1/2 4 2 ALtima® Blaze Straight
.5000 13250000TW 76994 1/2 1/2 4 2 TiN Weldon
.5000 13250000GP 17567 1/2 1/2 4 2 Gem Plus Straight
.6250 13262500 13227 5/8 5/8 4-5/8 2-1/2 Uncoated Straight
.6250 13262500T 11056 5/8 5/8 4-5/8 2-1/2 TiN Straight
.6299 13262990 13229 16mm 16mm 117mm 65mm Uncoated Straight
.6299 13262990A 11059 16mm 16mm 117mm 65mm ALtima® Straight
.7500 13275000 13231 3/4 3/4 5-1/4 3 Uncoated Straight
.7500 13275000A 11060 3/4 3/4 5-1/4 3 ALtima® Straight
.7500 13275000C 76995 3/4 3/4 5-1/4 3 TiCN Straight
.7500 13275000GP 19413 3/4 3/4 5-1/4 3 Gem Plus Straight
.7874 13278740 13233 20mm 20mm 133mm 80mm Uncoated Straight
.9843 13298430 13235 25mm 25mm 152mm 80mm Uncoated Straight
1.0000 13210000 13201 1 1 6 3 Uncoated Straight
1.0000 13210000B 76991 1 1 6 3 ALtima® Blaze Straight
