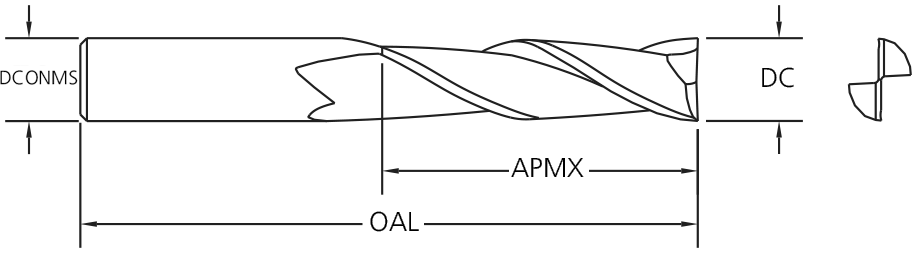

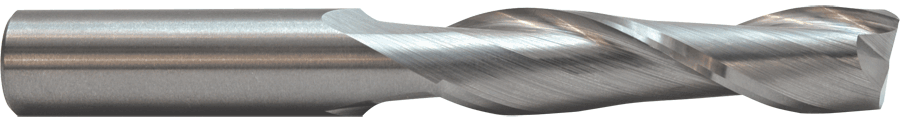

product photo product drawing

End Mills / 123

Solid Carbide TuffCut® GP 2 Flute End Mill
Designed for deep pocket milling and other applications where standard flute lengths are too short.
  • 2 Flute
  • Solid carbide
  • Uncoated, available coated upon request
  • General purpose milling of most materials
  • Center Cutting
  • Long flute lengths, square end
  • 30° Helix Angle
  • For roughing and finishing applications
*This series has been obsoleted.  Tools with stock will be available until the stock is depleted and cannot be returned.  Contact customer service if you require an obsolete tool as a special.

Product Range

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Neck Length (L3) Corner Radius Coating Helix Angle Center Cutting Shank Type Tool Construction # Flutes RH
.1181 12311810A 10971 3.0mm 3.0 64 25.0 ALtima® 30° 1 Straight Solid 2
.1250 12312500R.020 10973 1/8 1/8 2-1/2 1 .020R Uncoated 30° 1 Straight Solid 2
.1575 12315750A 10974 4.0mm 4.0 64 25.0 ALtima® 30° 1 Straight Solid 2
.1968 12319680A 10978 5.0mm 5.0 64 25.0 ALtima® 30° 1 Straight Solid 2
.2362 12323620 12309 6.0mm 6.0 76 30.0 Uncoated 30° 1 Straight Solid 2
.2362 12323620A 10979 6.0mm 6.0 76 30.0 ALtima® 30° 1 Straight Solid 2
.2500 12325000 12311 1/4 1/4 3 1-1/4 Uncoated 30° 1 Straight Solid 2
.3937 12339370A 10986 10.0mm 10.0 89 40.0 ALtima® 30° 1 Straight Solid 2
.4375 12343750 12321 7/16 7/16 4 1-3/4 Uncoated 30° 1 Straight Solid 2
.4724 12347240 12323 12.0mm 12.0 102 50.0 Uncoated 30° 1 Straight Solid 2
.4724 12347240A 10987 12.0mm 12.0 102 50.0 ALtima® 30° 1 Straight Solid 2
.5000 12350000 12325 1/2 1/2 4 2 Uncoated 30° 1 Straight Solid 2
.7874 12378740A 10992 20.0mm 20.0 133 80.0 ALtima® 30° 1 Straight Solid 2
