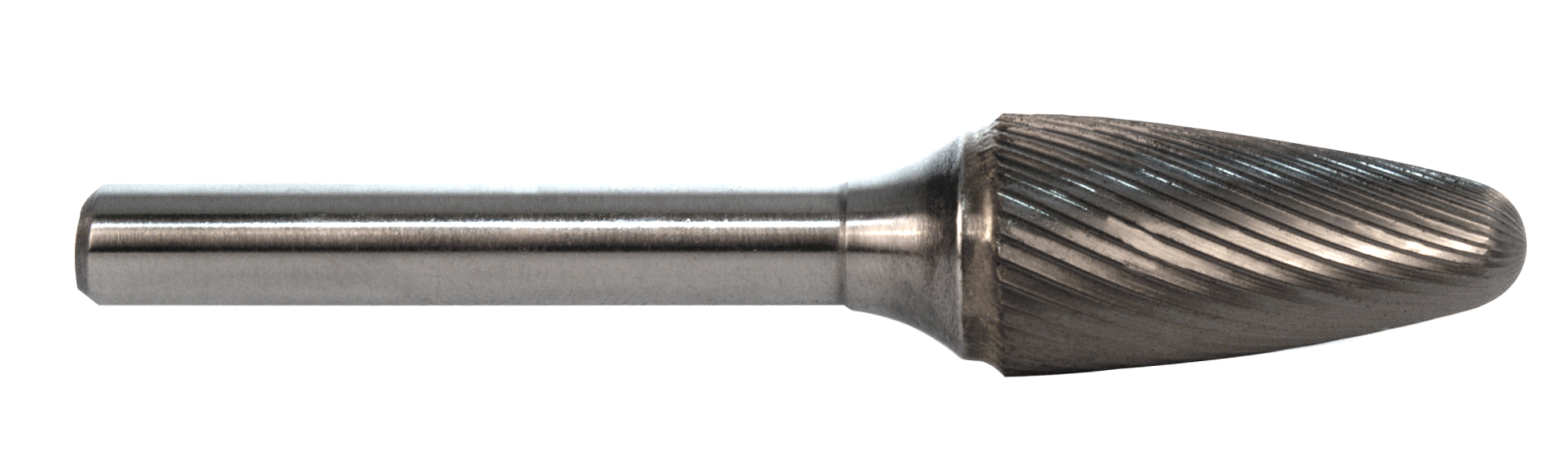

product photo

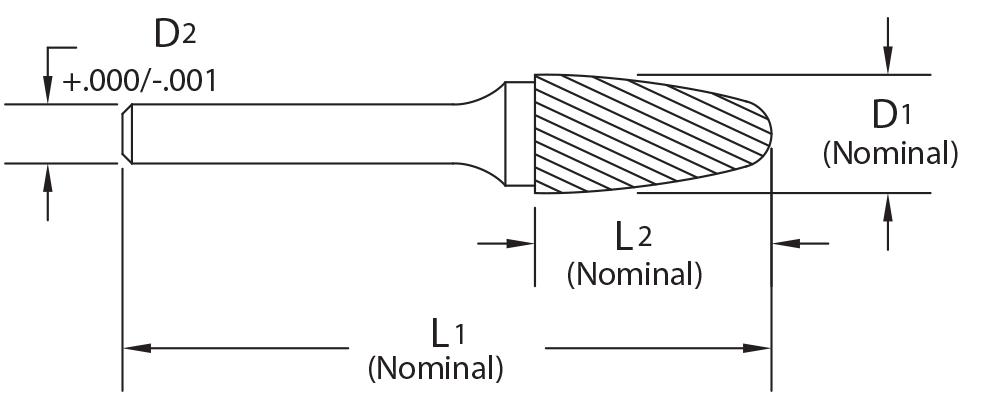

product drawing

Burs / 70SF

Solid Carbide Edge Hog® Bur

Tree Shape Radius End Micro Sizes

SCTI SF
Solid carbide 1/4" sizes and below, brazed construction over 1/4"
Inch and metric sizes
Single, double, and fine cuts available

Materials

Series Attributes

Downloads

Speed/feed and bur type of cut and applications data

Product Range

	Tool No.	EDP	Diameter (D/D1)	Shank Diameter (D2)	Overall Length (L1)	Flute Length (L2)	Specification	Type of Cut	Coating	Shank Type

.2500	70050020	70109	1/4	1/8	2	1/2	SF-51	Single	Uncoated	Straight
.2500	70050027	70117	1/4	1/8	2	1/2	SF-51-D	Double Cut	Uncoated	Straight
.2500	70050030	70125	1/4	1/8	2	1/2	SF-51-F	Fine	Uncoated	Straight
.2520	70050020M	70113	6.4mm	3mm	51mm	12.7mm	SF-51M	Single	Uncoated	Straight
.2520	70050027M	70121	6.4mm	3mm	51mm	12.7mm	SF-51M-D	Double Cut	Uncoated	Straight
.2520	70050030M	70129	6.4mm	3mm	51mm	12.7mm	SF-51M-F	Fine	Uncoated	Straight
.2520	70050026M	76680	6.4mm	3mm	51mm	12.7mm	SF-51M Diam	Std Diamond	Uncoated	Straight
.2520	70050036M	76682	6.4mm	3mm	51mm	12.7mm	SF-51M-F Diam	Fine Diamond	Uncoated	Straight
.2520	70050027MA	20131	6.4mm	3mm	51mm	12.7mm	SF-51M-D	Double Cut	ALtima®	Straight
