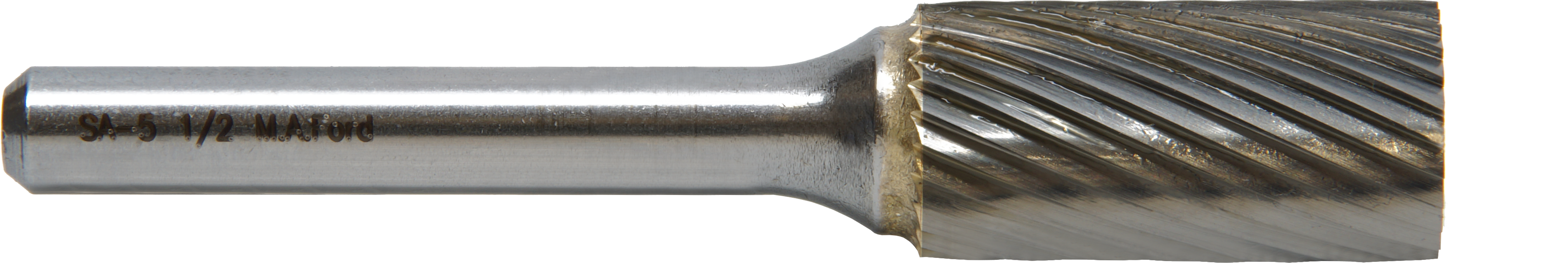

product photo

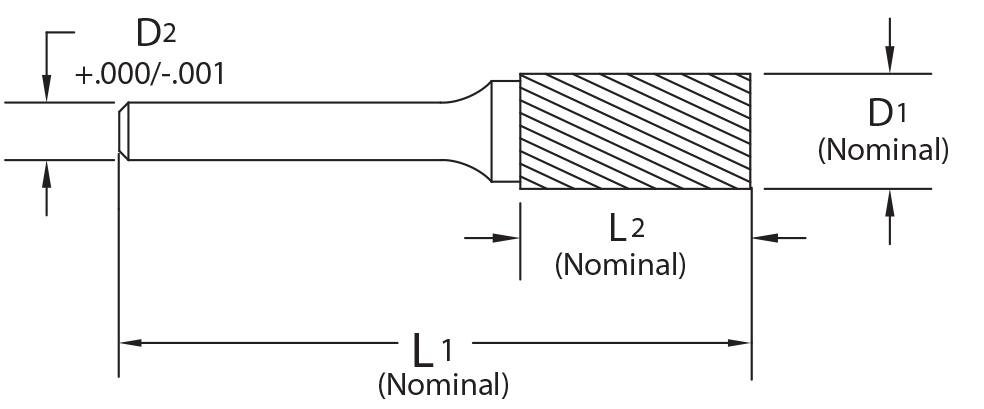

product drawing

Burs / 70SA

Solid Carbide Edge Hog® Bur

Cylindrical Flat End Micro Sizes

SCTI SA
Solid carbide 1/4" sizes and below, brazed construction over 1/4"
Inch and metric sizes
Single, double, and fine cuts available

Materials

Series Attributes

Downloads

Speed/feed and bur type of cut and applications data
Tolerance Chart

Product Range

	Tool No.	EDP	Diameter (D/D1)	Shank Diameter (D2)	Overall Length (L1)	Flute Length (L2)	Specification	Type of Cut	Coating	Shank Type

.2500	70010020	70013	1/4	1/8	2	1/2	SA-51	Single	Uncoated	Straight
.2500	70010027	70021	1/4	1/8	2	1/2	SA-51-D	Double Cut	Uncoated	Straight
.2500	70010030	70029	1/4	1/8	2	1/2	SA-51-F	Fine	Uncoated	Straight
.2500	70010036	76657	1/4	1/8	2	1/2	SA-51-F Diam	Fine Diamond	Uncoated	Straight
.2520	70010020M	70017	6.4mm	3mm	51mm	12.7mm	SA-51M	Single	Uncoated	Straight
.2520	70010027M	70025	6.4mm	3mm	51mm	12.7mm	SA-51M-D	Double Cut	Uncoated	Straight
.2520	70010030M	70033	6.4mm	3mm	51mm	12.7mm	SA-51M-F	Fine	Uncoated	Straight
.2520	70010037M	76662	6.4mm	3mm	51mm	12.7mm	SA-51M-F Alt Diam	Fine Alternate Diamond	Uncoated	Straight
